Di Box MOTU ZBox Passive Direct Box

 เพิ่มเมื่อ: 24/07/2017
 แก้ไขล่าสุด: 09/07/2020
 เบอร์โทรติดต่อ: 084-100-1007, 0813425751 ,080-603-8998, 02804-8800


ไดเร็คบ็อก MOTU ZBox Guitar Impedance Adapter with 16″ Hardwired Cable

2,300.00 บาท

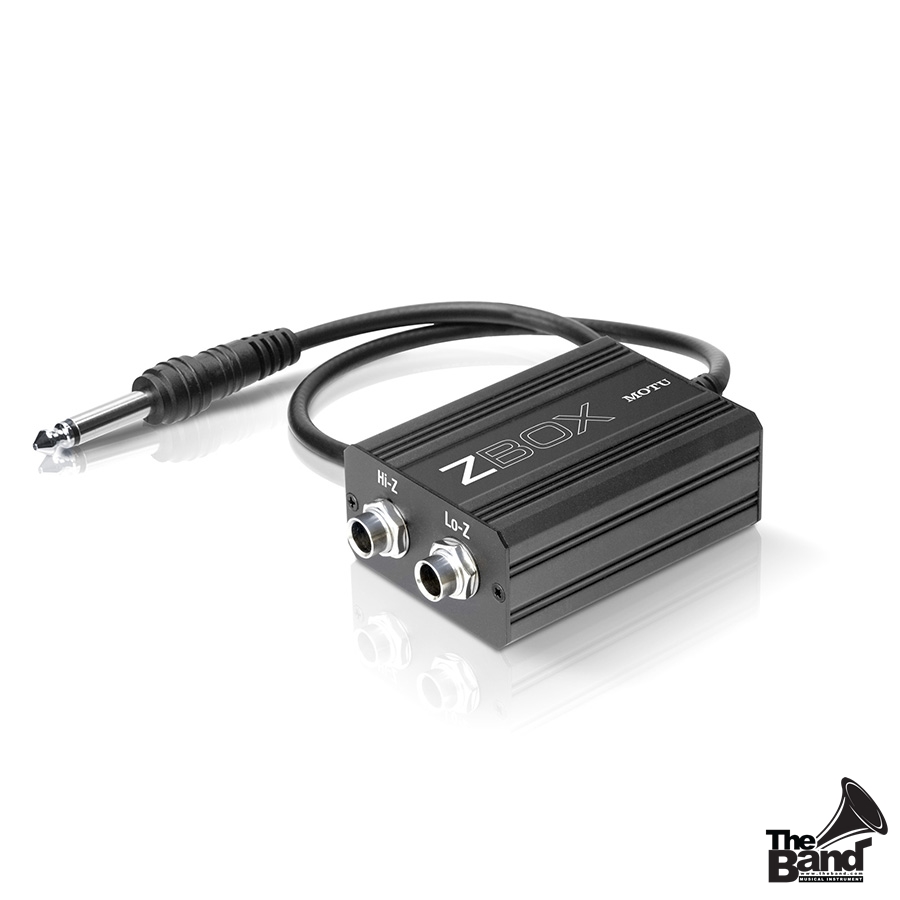

MOTU ZBox 1-channel Passive Guitar Direct Box

ไดเร็คบ็อก MOTU ZBox Guitar Impedance Adapter with 16″ Hardwired Cable

The ZBox from MOTU is a guitar pickup impedance adapter that allows for connecting an electric guitar or bass to a computer audio interface without losing tone. Today’s guitar amp modeling plug-ins are amazing in their ability to faithfully model real guitar amplifiers. However, they’re missing a crucial element of the signal path that simply cannot be modeled in software – the proper input impedance of a real guitar amplifier.

The ZBox matches the output impedance (“Z”) of your guitar to the impedance of a non-amp input, such as the microphone/instrument preamp input on your audio interface. Without proper impedance matching, your guitar won’t sound natural or “feel right”. The authentic matching circuits emulate the 2-jack switching network found on many classic amplifiers, complete with analog simulation of the input tube grid. To support a wide range of guitars, the ZBox provides authentic “Hi-Z” and “Lo-Z” inputs, just like the ones found on many classic guitar amplifiers.

The unit is not a computer-related device and does not require any software drivers. It does not even require a power source. If you use Digital Performer’s Custom 59 amp model plug-in, or a third-party guitar plug-in product like IK Multimedia Amplitube, Waves GTR, Native Instruments Guitar Rig, or similar guitar modeling software, the use of the ZBox will further enhance the authenticity of the tones you play from these products.


  • Simple to use guitar interface that restores natural guitar tone
  • Works with audio interfaces equipped with preamps on either a Mac or PC
  • Works with other devices with guitar (“instrument”) inputs such as wireless transmitters, mixers, etc.
  • Authentic matching circuits that emulate 2-jack switching networks on classic guitar amps
  • No extra cables or power required
  • No software or drivers required
  • Plug and play operation with any guitar
  • Sturdy, lightweight metal housing
  • Built-in 16-inch cable with 1/4″ plug for connection to any guitar input



Type Guitar Impedance Adapter
Channels 1
Inputs 1 x Hi-Z Instrument, 1 x Lo-Z Instrument
Outputs 1 x Instrument
Height 1″
Width 1.75″
Depth 2.5″
Weight 0.2 lbs.
